Dimensions - Structural Tees cut from UCs

Welcome to our Structural Tees cut from UCs dimensions page! Here you'll find dimensions for all UK Structural Tees cut from UCs steel sections described by the Steelwork Design Guide to BS5950-1:2000, Volume 1, Section Properties, Member Capacities, 7th Edition (also known as The Blue Book). Sort the table below according to any property and select a CAD file to download using the reference links in the left-most column. You can also purchase all our CAD data in one easy download, containing the sections as individual files and AutoCAD Design Center files or Microstation cel libraries - just click on the Shop button in the navigation above.

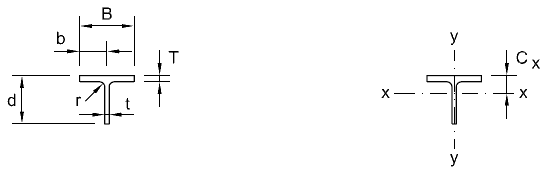

Section Reference Cut from Universal Column Mass per Metre Width of Section Depth of Section Thickness Root Radius Ratios for Local Buckling Dimension
          Web Flange   Flange Web
    kg/m B
mm
d
mm
t
mm
T
mm
r
mm
b/T d/t Cx
406x178x118 356x406x235 117.5 394.8 190.4 18.4 30.2 15.2 6.54 10.3 3.4
368x178x101 356x368x202 100.9 374.7 187.2 16.5 27 15.2 6.94 11.3 3.29
368x178x89 356x368x177 88.5 372.6 184 14.4 23.8 15.2 7.83 12.8 3.09
368x178x77 356x368x153 76.5 370.5 180.9 12.3 20.7 15.2 8.95 14.7 2.88
368x178x65 356x368x129 64.5 368.6 177.7 10.4 17.5 15.2 10.5 17.1 2.69
305x152x79 305x305x158 79 311.2 163.5 15.8 25 15.2 6.22 10.3 3.04
305x152x69 305x305x137 68.4 309.2 160.2 13.8 21.7 15.2 7.12 11.6 2.86
305x152x59 305x305x118 58.9 307.4 157.2 12 18.7 15.2 8.22 13.1 2.69
305x152x49 305x305x97 48.4 305.3 153.9 9.9 15.4 15.2 9.91 15.5 2.5
254x127x84 254x254x167 83.5 265.2 144.5 19.2 31.7 12.7 4.18 7.53 3.07
254x127x66 254x254x132 66 261.3 138.1 15.3 25.3 12.7 5.16 9.03 2.7
254x127x54 254x254x107 53.5 258.8 133.3 12.8 20.5 12.7 6.31 10.4 2.45
254x127x45 254x254x89 44.4 256.3 130.1 10.3 17.3 12.7 7.41 12.6 2.21
254x127x37 254x254x73 36.5 254.6 127 8.6 14.2 12.7 8.96 14.8 2.05
203x102x64 203x203x127 63.7 213.9 120.7 18.1 30.1 10.2 3.55 6.67 2.73
203x102x57 203x203x113 56.7 212.1 117.5 16.3 26.9 10.2 3.94 7.21 2.56
203x102x50 203x203x100 49.8 210.3 114.3 14.5 23.7 10.2 4.44 7.88 2.38
203x102x43 203x203x86 43 209.1 111 12.7 20.5 10.2 5.1 8.74 2.2
203x102x36 203x203x71 35.5 206.4 107.8 10 17.3 10.2 5.97 10.8 1.95
203x102x30 203x203x60 30 205.8 104.7 9.4 14.2 10.2 7.25 11.1 1.89
203x102x26 203x203x52 26 204.3 103 7.9 12.5 10.2 8.17 13 1.75
203x102x23 203x203x46 23 203.6 101.5 7.2 11 10.2 9.25 14.1 1.69
152x76x26 152x152x51 25.6 157.4 85.1 11 15.7 7.6 5.01 7.74 1.79
152x76x22 152x152x44 22 155.9 83 9.5 13.6 7.6 5.73 8.74 1.66
152x76x19 152x152x37 18.5 154.4 80.8 8 11.5 7.6 6.71 10.1 1.53
152x76x15 152x152x30 15 152.9 78.7 6.5 9.4 7.6 8.13 12.1 1.41
152x76x12 152x152x23 11.5 152.2 76.1 5.8 6.8 7.6 11.2 13.1 1.39
